Morpho Internals Part 2: IRMs

Recall that in part 1 we walked through Morpho._accrueInterest():

solidity
function _accrueInterest(MarketParams memory marketParams, Id id) internal {
    uint256 elapsed = block.timestamp - market[id].lastUpdate;
    if (elapsed == 0) return;

    if (marketParams.irm != address(0)) {
        uint256 borrowRate = IIrm(marketParams.irm).borrowRate(marketParams, market[id]);
        uint256 interest = market[id].totalBorrowAssets.wMulDown(borrowRate.wTaylorCompounded(elapsed));
        ...
     }
     ...
 }

The function calls irm.borrowRate() to fetch the market’s current borrow rate. That borrow rate becomes the $r$ in $e^{rt} - 1$ when computing interest.

In this part of the series we discuss how Morpho IRMs work and deep dive into irm.borrowRate().

Morpho implements two IRMs in morpho-blue-irm: AdaptiveCurveIrm and FixedRateIrm. We will spend more time on AdaptiveCurveIrm because it is the "production" model used most often, but we start with FixedRateIrm as a warm-up.

One theme to keep in mind throughout this article: Morpho accrues interest over a time interval since the last update, so the "right" borrow rate to apply is the average borrow rate over that interval. FixedRateIrm makes that trivial (the rate is constant), while AdaptiveCurveIrm explicitly computes an average and updates internal state.

Background: units and fixed-point math#

This post is much easier to follow if you lock in three "unit rules" up front:

1. Borrow rates are per-second and WAD-scaled. The IRM returns a per-second rate $r$ where $1e18$ represents 1.0.
   • Example: an annual rate of 4% is turned into a per-second WAD value by: $r = 0.04 / \text{secondsPerYear}$.
2. WAD-scaled values don’t all have the same "unit". utilization, err, speed, and linearAdaptation are all stored as fixed-point WAD numbers, but they don’t all represent the same kind of quantity.
   • utilization and err are dimensionless fractions.
   • speed is "per second" (so that speed * elapsed is dimensionless).
3. AdaptiveCurveIrm uses signed fixed-point math and rounds toward zero. Because utilization can be above or below target, the "error" can be negative.
   • wMulToZero(x, y) = (x * y) / 1e18 (rounds toward 0)
   • wDivToZero(x, y) = (x * 1e18) / y (rounds toward 0)

Quick units cheat sheet#

• WAD: $1e18$ scaling factor used for fixed-point decimals.
• $u$ / utilization: WAD-scaled fraction in $[0, 1]$.
• $e(u)$ / err: signed, WAD-scaled, in $[-1, +1]$ by construction.
• $k_d$ (docs) / CURVE_STEEPNESS (code): curve steepness (docs use $k_d = 4$).
• $k_p$ (docs) / ADJUSTMENT_SPEED (code): adjustment aggressiveness (docs use $k_p = 50$ per year).

Anchor drift terms (this is where people usually get tripped up):

• ADJUSTMENT_SPEED = 50 ether / (365 days) is already "per second" (WAD-scaled).
• speed = ADJUSTMENT_SPEED.wMulToZero(err) is also "per second" (WAD-scaled), because err is dimensionless.
• elapsed is measured in seconds.
• linearAdaptation = speed * elapsed is therefore dimensionless (but still represented as WAD-scaled fixed-point).

So, in real-number math, this corresponds to:

$$\mathrm{linearAdaptation} \approx (k_p/\mathrm{secondsPerYear}) \cdot e(u) \cdot \Delta t$$

The approximation is only about fixed-point rounding; conceptually it’s the same quantity.

borrowAPY and supplyAPY#

The Morpho docs define APYs (annualized, compounding-aware) from the per-second borrowRate returned by the IRM:

• Borrow APY: $\text{borrowAPY} = e^{\text{borrowRate} \cdot \text{secondsPerYear}} - 1$
• Supply APY: $\text{supplyAPY} = \text{borrowAPY} \cdot u \cdot (1-\text{fee})$

Where fee is the per-market curator/protocol fee and $u$ is utilization.

Note that these two concepts aren’t implemented in the contract. The frontend UI derives borrowAPY and supplyAPY from borrowRate.

Also note: the AdaptiveCurve implementation bounds the anchor rate (rateAtTarget, i.e., $r_{90\%}$) between MIN_RATE_AT_TARGET = 0.1%/year and MAX_RATE_AT_TARGET = 200%/year (both expressed as per-second WAD rates in ConstantsLib).

FixedRateIrm#

Code: https://github.com/morpho-org/morpho-blue-irm/blob/main/src/fixed-rate-irm/FixedRateIrm.sol

Borrow rate is the interest rate per second that borrowers pay on their loans. FixedRateIrm is intentionally simple: governance (or whoever controls the IRM) sets a per-market borrow rate once, and Morpho reads it later.

One nuance from the actual implementation: FixedRateIrm does not implement access control on setBorrowRate—the rate is simply "write-once per market id". In practice this still ends up being controlled by whoever is coordinating market creation (and by Morpho governance enabling the IRM address), but it’s worth knowing the contract itself does not enforce an owner.

solidity
mapping(Id => uint256) public borrowRateStored;

function setBorrowRate(Id id, uint256 newBorrowRate) external {
    require(borrowRateStored[id] == 0, RATE_SET);
    require(newBorrowRate != 0, RATE_ZERO);
    require(newBorrowRate <= MAX_BORROW_RATE, RATE_TOO_HIGH);

    borrowRateStored[id] = newBorrowRate;
}

You may notice there are two getters, borrowRateView() and borrowRate(), with identical logic:

solidity
function borrowRateView(MarketParams memory marketParams, Market memory) external view returns (uint256) {
    uint256 borrowRateCached = borrowRateStored[marketParams.id()];
    require(borrowRateCached != 0, RATE_NOT_SET);
    return borrowRateCached;
}

function borrowRate(MarketParams memory marketParams, Market memory) external view returns (uint256) {
    uint256 borrowRateCached = borrowRateStored[marketParams.id()];
    require(borrowRateCached != 0, RATE_NOT_SET);
    return borrowRateCached;
}

This is not "weird" once you look at the IIrm interface: Morpho calls borrowRate() in state-changing flows, while borrowRateView() is the view-only variant for off-chain quoting and integrations. In FixedRateIrm, both are view because the model has no internal state to update.

One important detail: FixedRateIrm.borrowRate() reverts if the rate is not set, so rates must be set before market creation if you want to use this IRM.

AdaptiveCurveIrm#

Code: https://github.com/morpho-org/morpho-blue-irm/blob/main/src/adaptive-curve-irm/AdaptiveCurveIrm.sol

Doc: https://docs.morpho.org/get-started/resources/contracts/irm

Overview#

At a high level, "adaptive" means continuously adjusting the interest rate to push utilization toward a target utilization.

$$u(t) = \frac{\text{totalBorrowAssets}(t)}{\text{totalSupplyAssets}(t)}$$

In Morpho, the numerator is market[id].totalBorrowAssets and the denominator is market[id].totalSupplyAssets. Those values are tracked in Morpho.sol; the IRM computes utilization from them.

There are two cases where we want to adjust the interest rate curve:

• When $u(t) > u_{target}$, demand is "too high", so the IRM makes borrowing more expensive (to push borrowers to repay and to attract suppliers).
• When $u(t) < u_{target}$, demand is "too low", so the IRM makes borrowing cheaper (to encourage borrowing).

Here $u_{target}$ is a constant defined in ConstantsLib: TARGET_UTILIZATION = 0.9 ether (90%, WAD-scaled).

Why such a high target? As the docs emphasize, Morpho markets do not use supplied assets as collateral, which removes the "must stay liquid at all times for liquidations" constraint common in pooled lending designs. This enables a more aggressive target utilization (90%) while still relying on the IRM to pull utilization back down when it gets too close to illiquidity.

Mental model: curve + anchor#

With that motivation in mind, it helps to view AdaptiveCurve as having two layers:

1. Instantaneous layer (the curve): given the current utilization $u$, compute a signed normalized error $e(u)$ (stored as err) and apply a curve to scale a base rate.
2. Slow-moving layer (the anchor): update the base rate over time based on persistent error.

AdaptiveCurveIrm stores one piece of per-market state:

• rateAtTarget[id]: the stored borrow rate at the target utilization (i.e., $r_{90\%}$). It sets the overall "height" of the curve.

Even if two markets are both at 90% utilization today, their rateAtTarget can differ if one has spent weeks above target and the other weeks below target.

borrowRate() vs borrowRateView()#

borrowRate() (non-view) computes an average borrow rate over the elapsed interval and updates rateAtTarget. borrowRateView() returns the same computed rate without updating state. Morpho calls borrowRate() during accrual / market creation; integrations call borrowRateView() for quoting.

BorrowRateUpdate: why there are two rates#

When Morpho calls borrowRate() it emits BorrowRateUpdate(id, avgBorrowRate, rateAtTarget). It’s tempting to assume both numbers represent "the borrow rate", but they serve different purposes:

• avgBorrowRate: the average per-second borrow rate over the last accrual interval. This is the rate Morpho plugs into $e^{rt}-1$ in _accrueInterest().
• rateAtTarget: the end-of-interval anchor (the updated $r_{90\%}$) that will be used as the starting point next time.

That split is the whole reason the implementation has the slightly unusual signature (avgRate, endRateAtTarget).

If you want to compare rates in human units, convert a per-second WAD rate $r$ to an annualized approximation:

• APR (small-rate approximation): $\text{APR} \approx r \cdot \text{secondsPerYear}$
• APY (continuous compounding): $\text{APY} = e^{r \cdot \text{secondsPerYear}} - 1$

Worked example (numbers from an on-chain BorrowRateUpdate log)

Suppose a BorrowRateUpdate log shows:

avgBorrowRate  = 2288292706
rateAtTarget   = 2288771456

These are WAD-scaled per-second rates, so first convert to "plain per-second" by dividing by $1e18$.

Using $\text{secondsPerYear} \approx 31{,}556{,}926$:

• Anchor APR $\approx \frac{2288771456}{1e18} \cdot 31{,}556{,}926 \approx 0.0722$ (≈ 7.22%)
• Average-rate APR $\approx \frac{2288292706}{1e18} \cdot 31{,}556{,}926 \approx 0.0722$ (very close, as expected for short intervals)

The important conceptual point is not the tiny numerical difference in this particular log, but which number Morpho uses where:

• avgBorrowRate is used to charge interest for the past interval.
• rateAtTarget is stored to seed the IRM’s anchor update for the next interval.

Concretely, whenever Morpho calls borrowRate(), the IRM updates its anchor rate approximately as:

$$r_{90\%}^{\text{new}} \;=\; \text{clamp}\Bigl(r_{90\%}^{\text{old}} \cdot \exp\bigl((k_p/\text{secondsPerYear})\cdot e(u)\cdot \Delta t\bigr),\; \text{MIN},\; \text{MAX}\Bigr)$$

(The clamp is the .bound() call in _newRateAtTarget().)

In the Solidity implementation, $(k_p/\text{secondsPerYear})$ is represented by ConstantsLib.ADJUSTMENT_SPEED (per-second, WAD-scaled) and $e(u)$ is stored in err.

Motivation: if a market is chronically above target, the model ratchets the entire curve upward until liquidity returns; if it is chronically below target, it drifts the curve downward. Making the update proportional to $\Delta t$ keeps the economics closer to "per second" rather than "per call", and matches Morpho’s "accrue over an interval" design.

solidity
function borrowRate(MarketParams memory marketParams, Market memory market) external returns (uint256) {
    require(msg.sender == MORPHO, ErrorsLib.NOT_MORPHO);

    Id id = marketParams.id();

    (uint256 avgRate, int256 endRateAtTarget) = _borrowRate(id, market);

    rateAtTarget[id] = endRateAtTarget;

    return avgRate;
}

_borrowRate(): computing the average rate#

Going into _borrowRate(), the first thing is computing utilization (WAD-scaled):

solidity
int256 utilization =
    int256(market.totalSupplyAssets > 0 ? market.totalBorrowAssets.wDivDown(market.totalSupplyAssets) : 0);

Next we measure how far utilization deviates from target. This is the signed error term $e(u)$ (stored as err), normalized to the range $[-1, +1]$:

solidity
int256 errNormFactor = utilization > ConstantsLib.TARGET_UTILIZATION
    ? WAD - ConstantsLib.TARGET_UTILIZATION
    : ConstantsLib.TARGET_UTILIZATION;
int256 err = (utilization - ConstantsLib.TARGET_UTILIZATION).wDivToZero(errNormFactor);

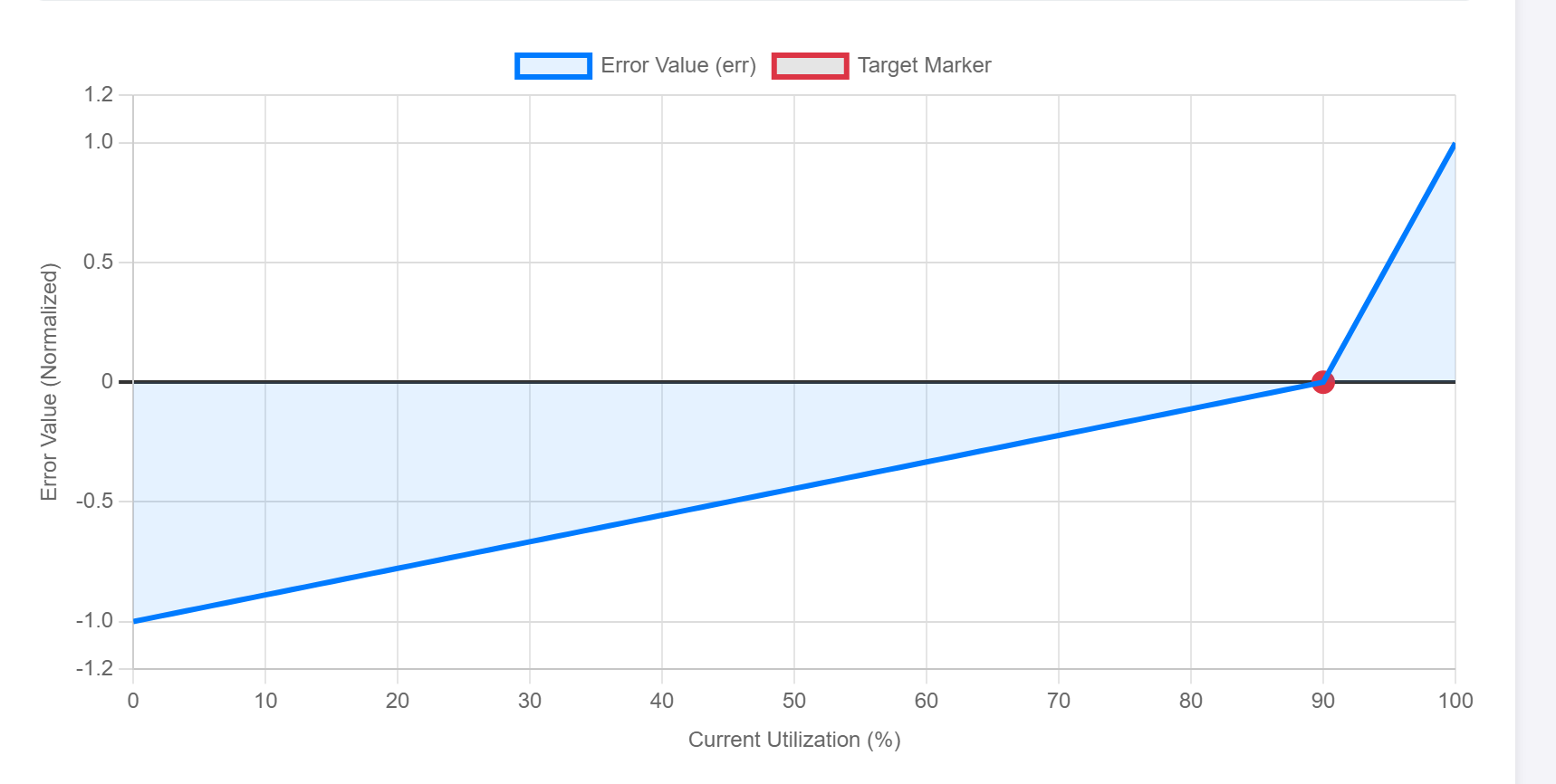

The code implements the following piecewise definition (with $u := u(t)$ being the current utilization):

$$e(u) =\begin{cases}\frac{u - u_{target}}{1 - u_{target}} & \text{if } u > u_{target} \\\frac{u - u_{target}}{u_{target}} & \text{if } u \leq u_{target}\end{cases}$$

Intuition: the "room" above target is small (only 10 percentage points from 90% to 100%), so the same absolute utilization deviation should be treated as a larger normalized error.

Design intent: bound $e(u)$ to $[-1, +1]$ (so drift is capped) while making "fully empty" and "fully utilized" equally extreme in normalized units.

A quick numeric feel with $u_{target}=0.9$:

• $u=1.00$ (100% utilized) $\Rightarrow e(u)=\frac{1.00-0.90}{0.10}=1.0$.
• $u=0.00$ (empty) $\Rightarrow e(u)=\frac{0.00-0.90}{0.90}=-1.0$.
• $u=0.95$ (only +5% above target) $\Rightarrow e(u)=\frac{0.05}{0.10}=0.5$.

This asymmetry is intentional: small moves above target represent a much more urgent liquidity risk than similar-sized moves below target.

When $u <= u_{target}$ the denominator is $u_{target}$; when $u > u_{target}$ the denominator is $1 - u_{target}$.

After computing err, the IRM reads the prior rateAtTarget:

solidity
int256 startRateAtTarget = rateAtTarget[id];

int256 avgRateAtTarget;
int256 endRateAtTarget;

if (startRateAtTarget == 0) {
    // First interaction.
    avgRateAtTarget = ConstantsLib.INITIAL_RATE_AT_TARGET;
    endRateAtTarget = ConstantsLib.INITIAL_RATE_AT_TARGET;
}

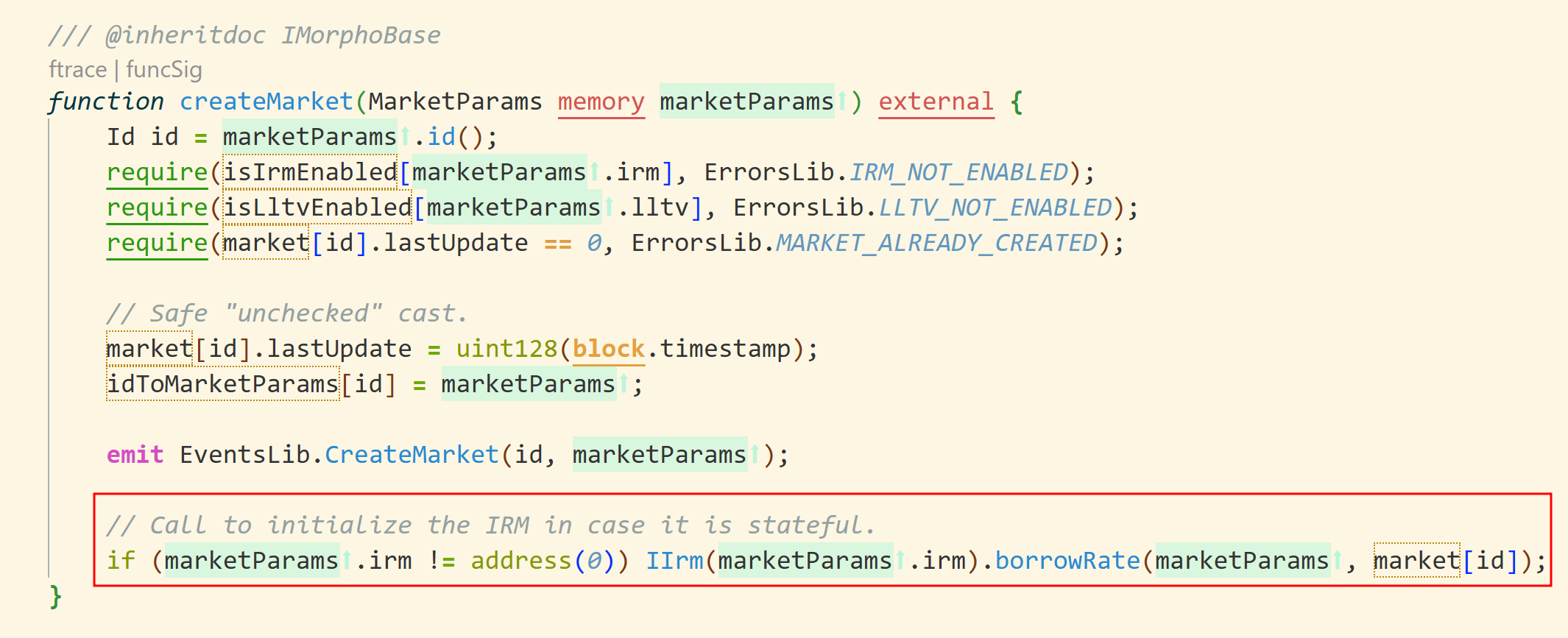

The first interaction happens in Morpho.createMarket() (Morpho calls the IRM once to initialize it).

So on first interaction, both avgRateAtTarget and endRateAtTarget are set to INITIAL_RATE_AT_TARGET, which is 4%/year converted to a per-second WAD rate. The curve still applies the current err, so the very first returned borrow rate already reflects utilization; the anchor just has not drifted yet.

solidity
/// @notice Initial rate at target per second (scaled by WAD).
/// @dev Initial rate at target = 4% (rate between 1% and 16%).
int256 public constant INITIAL_RATE_AT_TARGET = 0.04 ether / int256(365 days);

This means that at the very beginning, when utilization is at the 90% target, the model starts from a ~4% APR baseline. Future updates will move rateAtTarget up or down based on err and elapsed time.

Back to _borrowRate(). In the non-first-interaction branch, the model computes how much rateAtTarget should drift over the elapsed time:

solidity
else {
    // The speed is assumed constant between two updates, but it is in fact not constant because of interest.
    // So the rate is always underestimated.
    int256 speed = ConstantsLib.ADJUSTMENT_SPEED.wMulToZero(err);
    // market.lastUpdate != 0 because it is not the first interaction with this market.
    // Safe "unchecked" cast because block.timestamp - market.lastUpdate <= block.timestamp <= type(int256).max.
    int256 elapsed = int256(block.timestamp - market.lastUpdate);
    int256 linearAdaptation = speed * elapsed;

elapsed is measured in seconds. speed is "per second" (WAD-scaled), so linearAdaptation = speed * elapsed is a dimensionless WAD-scaled number (this corresponds to $(k_p/\text{secondsPerYear}) \cdot e(u) \cdot \Delta t$ in the docs notation). The comment about "underestimated" reflects that speed is frozen even though interest accrual nudges utilization during the interval, so the true path can be slightly steeper.

When $u > 90\%$, err > 0 so rateAtTarget increases; when $u < 90\%$, err < 0 so rateAtTarget decreases.

ADJUSTMENT_SPEED is a constant that controls how aggressively the model reacts to error; it is set to 50 ether / (365 days) (i.e., $k_p = 50$ per year, converted to per-second and WAD-scaled).

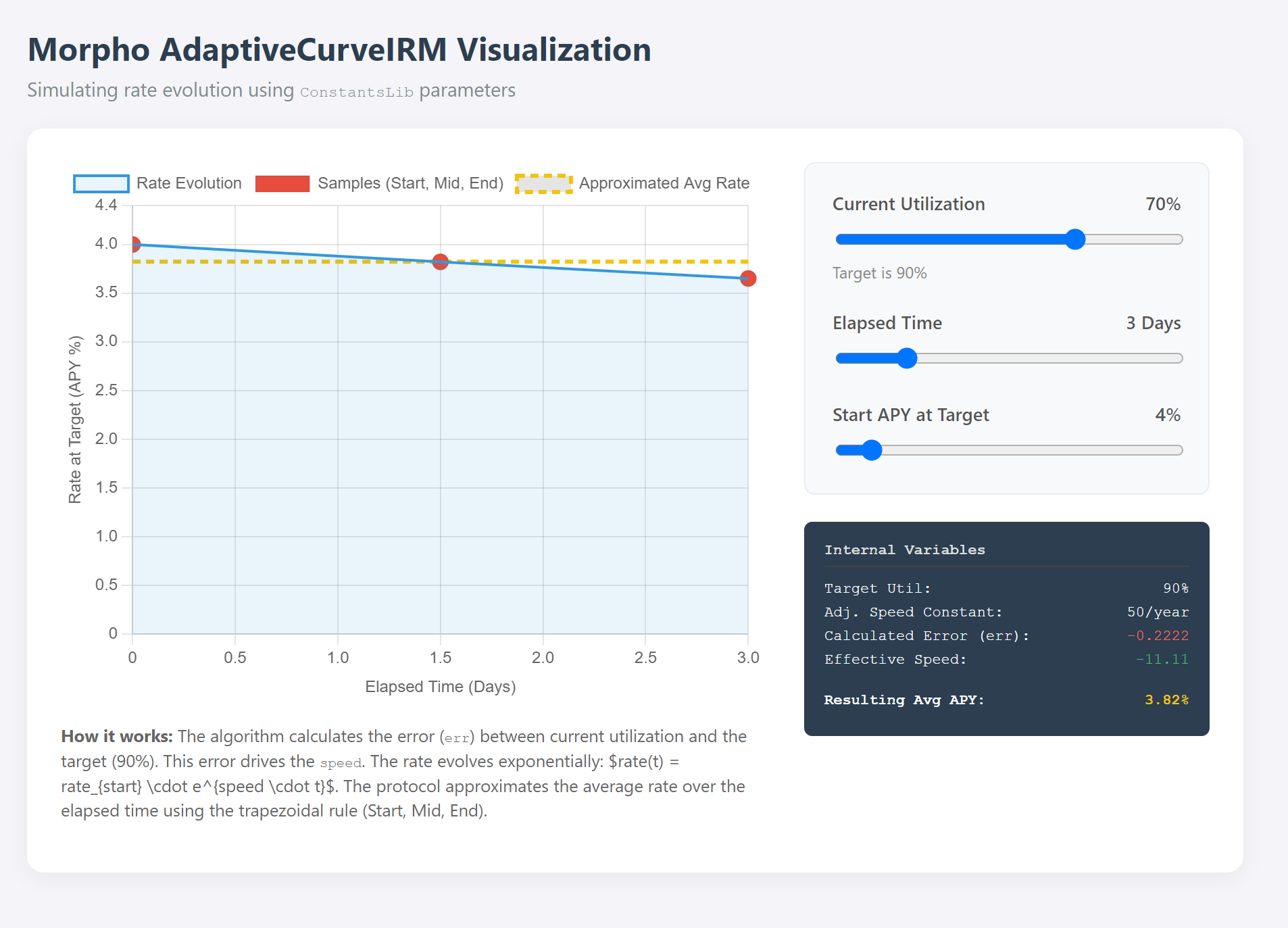

Visually we can see how $r_{90\%}$ (i.e., rateAtTarget) changes based on $u$ and elapsed time. Example when $u < 90\%$:

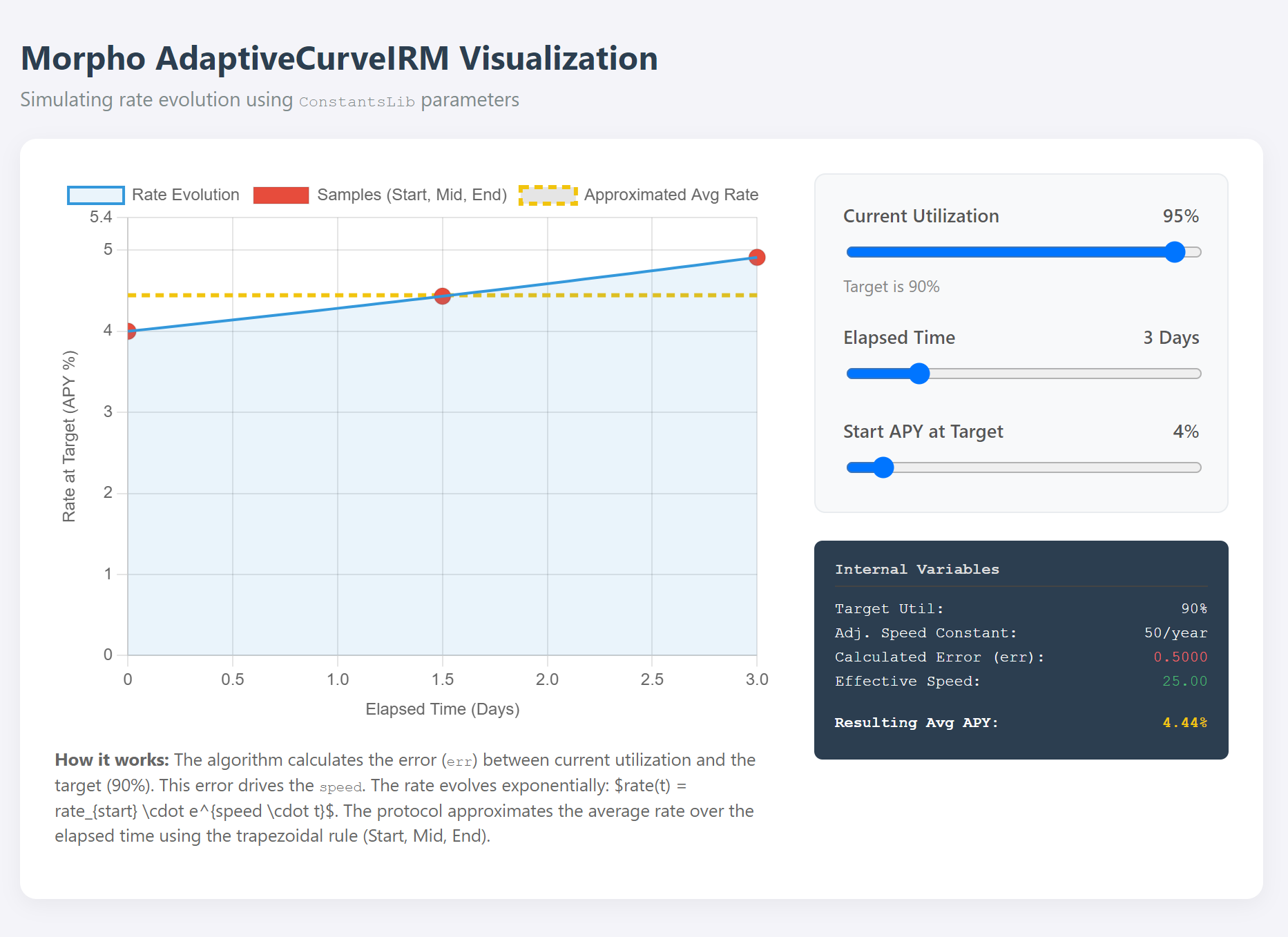

Example when $u > 90\%$:

Then the code handles a special case when linearAdaptation == 0:

solidity
if (linearAdaptation == 0) {
    // If linearAdaptation == 0, avgRateAtTarget = endRateAtTarget = startRateAtTarget;
    avgRateAtTarget = startRateAtTarget;
    endRateAtTarget = startRateAtTarget;
}

This occurs when err == 0 (exactly on target) or elapsed == 0. In either scenario, the time-averaged rate-at-target equals the start rate.

Otherwise, the IRM computes avgRateAtTarget (the time-average of rateAtTarget over the elapsed period). It samples the anchor at start, midpoint, and end and combines them with trapezoidal-style weights.

solidity
else {
    // Formula of the average rate that should be returned to Morpho Blue:
    // avg = 1/T * ∫_0^T curve(startRateAtTarget*exp(speed*x), err) dx
    // The integral is approximated with the trapezoidal rule:
    // avg ~= 1/T * Σ_i=1^N [curve(f((i-1) * T/N), err) + curve(f(i * T/N), err)] / 2 * T/N
    // Where f(x) = startRateAtTarget*exp(speed*x)
    // avg ~= Σ_i=1^N [curve(f((i-1) * T/N), err) + curve(f(i * T/N), err)] / (2 * N)
    // As curve is linear in its first argument:
    // avg ~= curve([Σ_i=1^N [f((i-1) * T/N) + f(i * T/N)] / (2 * N), err)
    // avg ~= curve([(f(0) + f(T))/2 + Σ_i=1^(N-1) f(i * T/N)] / N, err)
    // avg ~= curve([(startRateAtTarget + endRateAtTarget)/2 + Σ_i=1^(N-1) f(i * T/N)] / N, err)
    // With N = 2:
    // avg ~= curve([(startRateAtTarget + endRateAtTarget)/2 + startRateAtTarget*exp(speed*T/2)] / 2, err)
    // avg ~= curve([startRateAtTarget + endRateAtTarget + 2*startRateAtTarget*exp(speed*T/2)] / 4, err)
    endRateAtTarget = _newRateAtTarget(startRateAtTarget, linearAdaptation);
    int256 midRateAtTarget = _newRateAtTarget(startRateAtTarget, linearAdaptation / 2);
    avgRateAtTarget = (startRateAtTarget + endRateAtTarget + 2 * midRateAtTarget) / 4;
}

// Safe "unchecked" cast because avgRateAtTarget >= 0.
return (uint256(_curve(avgRateAtTarget, err)), endRateAtTarget);

You can summarize what’s happening as:

• Read startRateAtTarget from storage.
• Compute endRateAtTarget = startRateAtTarget * exp(speed * elapsed) (with clamping).
• Compute midRateAtTarget the same way using elapsed/2.
• Average them: avgRateAtTarget = (start + end + 2*mid) / 4.
• Return curve(avgRateAtTarget, err) and persist endRateAtTarget.

_newRateAtTarget(): exponential drift + clamping

endRateAtTarget and midRateAtTarget are computed by _newRateAtTarget():

solidity
    function _newRateAtTarget(int256 startRateAtTarget, int256 linearAdaptation) private pure returns (int256) {
        // Non negative because MIN_RATE_AT_TARGET > 0.
        return startRateAtTarget.wMulToZero(ExpLib.wExp(linearAdaptation))
            .bound(ConstantsLib.MIN_RATE_AT_TARGET, ConstantsLib.MAX_RATE_AT_TARGET);
    }

The code performs exponentiation on linear adaptation:

$$\mathrm{endRateAtTarget} = \mathrm{startRateAtTarget} \times e^{\mathrm{linearAdaptation}} = \mathrm{startRateAtTarget} \times e^{\mathrm{speed} \cdot \Delta t}$$

Where:

• linearAdaptation = speed * time_elapsed
• ExpLib.wExp(linearAdaptation) computes $e^{\mathrm{linearAdaptation}}$ in WAD-scaled fixed-point

Where does the exponential come from?#

The exponential is what you get if you model the anchor rate $r_{90\%}(t)$ as changing multiplicatively at a constant relative speed over the elapsed interval.

Concretely, the contract defines: $\text{speed} = \text{ADJUSTMENT\_SPEED} \cdot e(u)$ (signed; per-second, WAD-scaled). In the implementation, err (hence speed) is computed from the market snapshot passed to the IRM, so within a single accrual the model treats $\text{speed}$ as constant over the interval. Economically, if you imagine interest accruing continuously, totalBorrowAssets and totalSupplyAssets would drift during the interval, so utilization $u(t)$ (and thus err/speed) would not be perfectly constant. This is what the contract comment refers to when it says the "speed is assumed constant between two updates".

Let $r(t)$ denote the anchor itself (so $r(t)=r_{90\%}(t)$). The modeling choice is: the relative drift rate of the anchor is speed:

$$\text{relative change rate} := \frac{1}{r}\,\frac{dr}{dt}$$ $$\Rightarrow \frac{1}{r}\,\frac{dr}{dt} = \text{speed}$$

(Note that this is equivalent to $\frac{\Delta{r}}{r\Delta{t}}$ which models percentage change within a time range. For example, $\Delta{r} = 10$ and $r = 100$, then within 10 seconds the percentage change is 1% per second.)

Multiplying both sides by $r$ gives:

$$\frac{dr}{dt} = \text{speed} \cdot r$$

Solving this ODE over an interval of length $\Delta t$ gives:

$$\frac{dr}{dt} = \text{speed} \cdot r \quad\Longrightarrow\quad \frac{1}{r}\,dr = \text{speed}\, dt$$

Integrate both sides from $t$ to $t+\Delta t$ (and use that speed is treated as constant over the interval):

$$\int_{r(t)}^{r(t+\Delta t)} \frac{1}{r}\,dr \int_{t}^{t+\Delta t} \text{speed}\, dt$$ $$\ln\bigl(r(t+\Delta t)\bigr) - \ln\bigl(r(t)\bigr) = \text{speed}\cdot \Delta t$$

Exponentiate both sides:

$$r(t+\Delta t) = r(t) \cdot e^{\text{speed} \cdot \Delta t}$$

That’s exactly the shape implemented in _newRateAtTarget() via startRateAtTarget * exp(speed * elapsed).

In the Solidity variables, this is linearAdaptation = speed * elapsed and the update is startRateAtTarget * exp(linearAdaptation) (followed by clamping).

This "relative" (multiplicative) update has a few practical advantages on-chain:

• Call-frequency invariance: splitting $\Delta t$ into many smaller accruals gives the same result as one big accrual because $e^{a}\,e^{b}=e^{a+b}$.
• Scale-free adjustments: the model changes rates by a percentage, not a fixed absolute amount, so it behaves sensibly whether rates are at 1% APR or 100% APR.
• Positivity by construction: multiplying by $e^{x}$ cannot flip the sign of the rate, and the implementation still clamps to [MIN_RATE_AT_TARGET, MAX_RATE_AT_TARGET] for safety.

_curve(): turning error into an actual borrow rate

Once avgRateAtTarget (the trapezoidal average of the anchor over the interval) is computed, _curve() applies the piecewise slope based on err ($e(u)$). In code it is parameterized by CURVE_STEEPNESS ($k_d = 4$):

$$r = \begin{cases}\left(\left(1 - \frac{1}{k_d}\right) \cdot e(u) + 1\right) \cdot \bar r_{90\%} & \text{if } u \leq u_{target} \\[10pt]\left((k_d - 1) \cdot e(u) + 1\right) \cdot \bar r_{90\%} & \text{if } u > u_{target}\end{cases}$$

Here $\bar r_{90\%}$ is the average anchor avgRateAtTarget returned by the trapezoidal step, and $r$ is the average borrow rate that Morpho uses for $e^{rt}-1$. The stored endRateAtTarget is kept only to seed the next interval.

Both cases collapse to a single linear form:

$$r = (\text{coeff} \cdot e(u) + 1) \cdot \bar r_{90\%}$$

_curve() doesn’t re-average over time; it takes an already averaged-at-target rate and scales it by how far utilization is from 90%. Because the curve is linear in its first argument, the result stays an average-type quantity: if utilization is on target (err = 0), you get the target average; if utilization drifts, you get that same average uniformly tilted up or down by the utilization error factor.

The +1 is the intercept that makes the curve pass through the anchor rate. In _curve() the borrow rate is modeled as $r = (\text{coeff} \cdot e(u) + 1)\,\bar r_{90\%}$, so when the utilization error $e(u)=0$ (exactly at the 90 % target) the term inside parentheses evaluates to 1 and Morpho returns the average anchor $\bar r_{90\%}$ instead of zero.

The curve is asymmetric: rates ramp up much faster (4x faster, you can see this when you substitute $k_d$ into the formula) when utilization is above target than they decay when utilization is below target. But why design this way? When utilization is above target, lenders’ funds are nearly fully deployed and any shock (withdrawals, borrower growth, price moves) risks hitting a hard liquidity wall. Raising rates aggressively in that regime creates strong pressure for borrowers to repay or for new suppliers to enter, restoring a safe buffer quickly. Conversely, when utilization is well below target the situation is merely "cash drag": capital is idle but not threatening solvency, so the protocol only trims rates gently to encourage more borrowing without shocking existing positions. In short, the asymmetric slope reflects two different economic priorities: severe penalties to cure liquidity stress when the pool is tight, and mild incentives to avoid over-penalizing lenders when the pool has slack.

Full derivation as in the long comment

This section is a faithful rewrite of the long comment inside AdaptiveCurveIrm._borrowRate().

We use the same notation as the comment:

• $T$ is the elapsed time since the last Morpho update.
• $N$ is the number of trapezoids.
• err is treated as constant over the interval.
• $f(x)$ is the (time-evolving) anchor rateAtTarget.

Step 1 — start from the definition (comment: avg = 1/T * ∫ ...).

Morpho needs an average borrow rate over $[0, T]$. Over the interval, the model treats err as constant and lets the anchor drift exponentially, so the instantaneous rate is curve(f(x), err).

$$\mathrm{avg} = \frac{1}{T} \int_0^T \text{curve}(\text{startRateAtTarget} \cdot e^{\text{speed} \cdot x}, \text{err})\, dx$$

Define the helper function exactly as in the comment:

$$f(x) = \text{startRateAtTarget} \cdot e^{\text{speed} \cdot x}$$

Step 2 — apply the trapezoidal rule (comment: avg ~= 1/T * Σ ...).

Split $[0, T]$ into $N$ equal sub-intervals of width $\Delta = T/N$. Trapezoidal rule approximates the integral by averaging the endpoints on each sub-interval:

$$\mathrm{avg} \approx \frac{1}{T} \sum_{i=1}^{N} \frac{\text{curve}(f(\tfrac{(i-1)T}{N}), \text{err}) + \text{curve}(f(\tfrac{iT}{N}), \text{err})}{2} \cdot \frac{T}{N}$$

Step 3 — cancel the $T$’s (comment: avg ~= Σ ... / (2 * N)).

The factor $(1/T) \cdot (T/N)$ becomes $1/N$:

$$\mathrm{avg} \approx \sum_{i=1}^{N} \frac{\text{curve}(f(\tfrac{(i-1)T}{N}), \text{err}) + \text{curve}(f(\tfrac{iT}{N}), \text{err})}{2N}$$

Step 4 — use linearity of curve in its first argument (comment: As curve is linear ...).

For fixed err, curve(rateAtTarget, err) is linear in rateAtTarget. That means averaging curved values equals curving the averaged anchors:

$$\mathrm{avg} \approx \text{curve}\left( \sum_{i=1}^{N} \frac{f(\tfrac{(i-1)T}{N}) + f(\tfrac{iT}{N})}{2N}, \mathrm{err} \right)$$

Step 5 — simplify the trapezoid weights (comment: [(f(0) + f(T))/2 + Σ ...] / N).

In a trapezoidal sum, interior points appear twice (once from the left trapezoid, once from the right), while endpoints appear once:

$$\mathrm{avg} \approx \text{curve}\left( \frac{\tfrac{f(0) + f(T)}{2} + \sum_{i=1}^{N-1} f(\tfrac{iT}{N})}{N}, \mathrm{err} \right)$$

Step 6 — substitute endpoints (comment: [(startRateAtTarget + endRateAtTarget)/2 + Σ ...] / N).

Since $f(0)=\text{startRateAtTarget}$ and $f(T)=\text{endRateAtTarget}$:

$$\mathrm{avg} \approx \text{curve}\left( \frac{\tfrac{\text{startRateAtTarget} + \text{endRateAtTarget}}{2} + \sum_{i=1}^{N-1} f(\tfrac{iT}{N})}{N}, \mathrm{err} \right)$$

Step 7 — plug in $N=2$ (comment: With N = 2: ...).

With $N=2$, there is exactly one interior sample at $x=T/2$:

$$\mathrm{avg} \approx \text{curve}\left( \frac{\tfrac{\text{startRateAtTarget} + \text{endRateAtTarget}}{2} + f(\tfrac{T}{2})}{2}, \mathrm{err} \right)$$

Using the definition of $f$ from above, $f(T/2)=\text{startRateAtTarget} \cdot e^{\text{speed} \cdot T/2}$, so:

$$\mathrm{avg} \approx \text{curve}\left( \frac{\tfrac{\text{startRateAtTarget} + \text{endRateAtTarget}}{2} + \text{startRateAtTarget} \cdot e^{\text{speed} \cdot T/2}}{2}, \mathrm{err} \right)$$

Distribute the denominators (exactly the last line of the comment):

$$\mathrm{avg} \approx \text{curve}\left( \frac{\text{startRateAtTarget} + \text{endRateAtTarget} + 2\cdot \text{startRateAtTarget} \cdot e^{\text{speed} \cdot T/2}}{4}, \mathrm{err} \right)$$

At the implementation level, the contract computes the midpoint term as midRateAtTarget:

solidity
endRateAtTarget = _newRateAtTarget(startRateAtTarget, linearAdaptation);
int256 midRateAtTarget = _newRateAtTarget(startRateAtTarget, linearAdaptation / 2);
avgRateAtTarget = (startRateAtTarget + endRateAtTarget + 2 * midRateAtTarget) / 4;

Note: in the contract, _newRateAtTarget(start, x) computes start * exp(x) and then clamps to [MIN_RATE_AT_TARGET, MAX_RATE_AT_TARGET]. The comment’s startRateAtTarget*exp(...) is the unclamped expression; the clamp only changes the math if the bounds are hit.

Visualization of trapezoidal rule#

Here is a visualization in desmos for the trapezoidal rule above. We don’t consider _curve() for simplicity: the visualization is made for $f(x) = \text{startRateAtTarget} \cdot e^{\text{speed} \cdot x}$. The visualization doesn’t mirror what is going on in the contract faithfully: the purpose is for readers to understand the trapezoidal rule intuitively so we sacrificed some rigor.

The exact parameters used in the visualization are:

f(x) = s * e^(p*x)

a = 0                  // lower bound of x in days. Fixed at 0.
b = 10                 // upper bound of x in days. You can slide this value.
e_rr = 0.5             // error function. You can slide this value
n = 2                  // number of trapezoid to approximate the area under curve
                       // It is fixed to 2 in code but you can slide this value here
s = 0.04/365           // start rateAtTarget per day (not per second for better view)
s_peed = 50/365 * e_rr // speed per day (not per second for better view)
